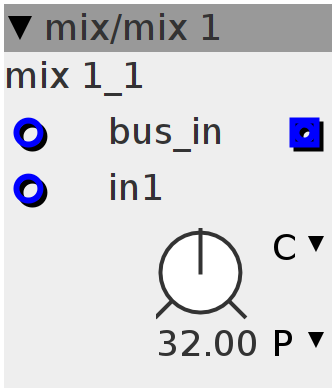

mix 1
1 input k-rate mixer
IO Variants: 2
Variant: 1
Inlets
frac32 input with unity gain
frac32 input 1
Outlets
frac32 mix out
Parameters
frac32.u.map gain1
{
int32_t accum = ___SMMUL(inlet_in1, param_gain1);
outlet_out = __SSAT(inlet_bus__in + (accum << 5), 28);
}Variant: 2
Inlets
frac32buffer input with unity gain
frac32buffer input 1
Outlets
frac32buffer mix out
Parameters
frac32.u.map gain1
{
int32_t accum = ___SMMUL(inlet_in1, param_gain1);
outlet_out = __SSAT(inlet_bus__in + (accum << 5), 28);
}
