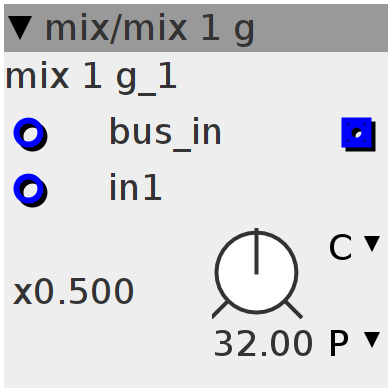

mix 1 g

1 input k-rate mixer, shows gain units
Author: Johannes Taelman
License: BSD
Github: mix/mix 1 g.axo

IO Variants: 2


Variant: 1

Inlets

frac32 input with unity gain

frac32 input 1

Outlets

frac32 mix out

Parameters

frac32.u.map.gain gain1

Control Rate
int32_t accum = ___SMMUL(inlet_in1, param_gain1);
outlet_out = __SSAT(inlet_bus__in + (accum << 1), 28);

Variant: 2

Inlets

frac32buffer input with unity gain

frac32buffer input 1

Outlets

frac32buffer mix out

Parameters

frac32.u.map.gain gain1

Audio Rate
int32_t accum = ___SMMUL(inlet_in1, param_gain1);
outlet_out = __SSAT(inlet_bus__in + (accum << 1), 28);
