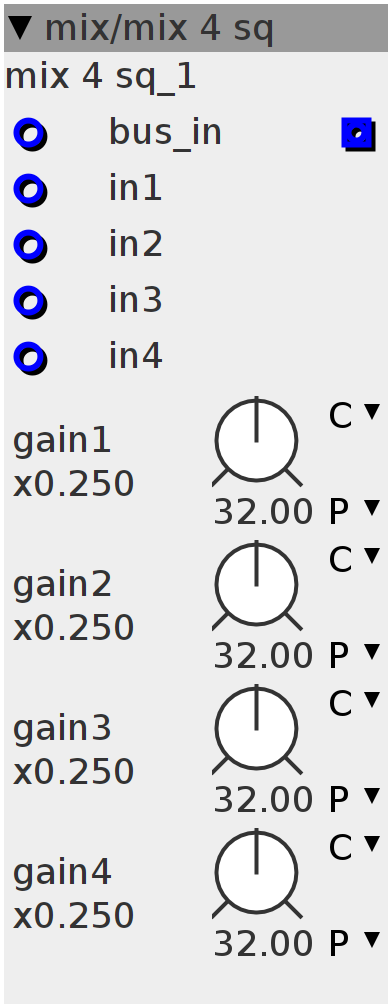

mix 4 sq

$\text{[math]}$

4 input k-rate mixer, square gain scale

Author: Johannes Taelman

License: BSD

Github: mix/mix 4 sq.axo

IO Variants: 2

Variant: 1

Inlets

frac32 input with unity gain

frac32 input 1

frac32 input 2

frac32 input 3

frac32 input 4

Outlets

frac32 mix out

Parameters

frac32.u.map.squaregain gain1

frac32.u.map.squaregain gain2

frac32.u.map.squaregain gain3

frac32.u.map.squaregain gain4

Control Rate

int32_t accum = ___SMMUL(inlet_in1, param_gain1);
accum = ___SMMLA(inlet_in2, param_gain2, accum);
;
accum = ___SMMLA(inlet_in3, param_gain3, accum);
;
accum = ___SMMLA(inlet_in4, param_gain4, accum);
;
outlet_out = __SSAT(inlet_bus__in + (accum << 1), 28);

Variant: 2

Inlets

frac32buffer input with unity gain

frac32buffer input 1

frac32buffer input 2

frac32buffer input 3

frac32buffer input 4

Outlets

frac32buffer mix out

Parameters

frac32.u.map.squaregain gain1

frac32.u.map.squaregain gain2

frac32.u.map.squaregain gain3

frac32.u.map.squaregain gain4

Audio Rate

int32_t accum = ___SMMUL(inlet_in1, param_gain1);
accum = ___SMMLA(inlet_in2, param_gain2, accum);
;
accum = ___SMMLA(inlet_in3, param_gain3, accum);
;
accum = ___SMMLA(inlet_in4, param_gain4, accum);
;
outlet_out = __SSAT(inlet_bus__in + (accum << 1), 28);
