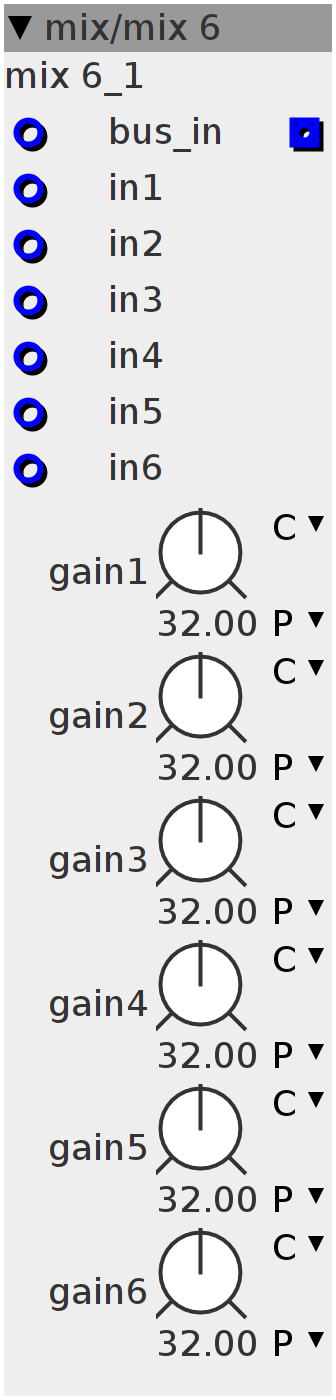

mix 6

$\text{[math]}$

6 input k-rate mixer

Author: Johannes Taelman

License: BSD

Github: mix/mix 6.axo

IO Variants: 2

Variant: 1

Inlets

frac32 input with unity gain

frac32 input 1

frac32 input 2

frac32 input 3

frac32 input 4

frac32 input 5

frac32 input 6

Outlets

frac32 mix out

Parameters

frac32.u.map gain1

frac32.u.map gain2

frac32.u.map gain3

frac32.u.map gain4

frac32.u.map gain5

frac32.u.map gain6

Control Rate

{
  int32_t accum = ___SMMUL(inlet_in1, param_gain1);
  accum = ___SMMLA(inlet_in2, param_gain2, accum);
  ;
  accum = ___SMMLA(inlet_in3, param_gain3, accum);
  ;
  accum = ___SMMLA(inlet_in4, param_gain4, accum);
  ;
  accum = ___SMMLA(inlet_in5, param_gain5, accum);
  ;
  accum = ___SMMLA(inlet_in6, param_gain6, accum);
  ;
  outlet_out = __SSAT(inlet_bus__in + (accum << 5), 28);
}

Variant: 2

Inlets

frac32buffer input with unity gain

frac32buffer input 1

frac32buffer input 2

frac32buffer input 3

frac32buffer input 4

frac32buffer input 5

frac32buffer input 6

Outlets

frac32buffer mix out

Parameters

frac32.u.map gain1

frac32.u.map gain2

frac32.u.map gain3

frac32.u.map gain4

frac32.u.map gain5

frac32.u.map gain6

Audio Rate

{
  int32_t accum = ___SMMUL(inlet_in1, param_gain1);
  accum = ___SMMLA(inlet_in2, param_gain2, accum);
  ;
  accum = ___SMMLA(inlet_in3, param_gain3, accum);
  ;
  accum = ___SMMLA(inlet_in4, param_gain4, accum);
  ;
  accum = ___SMMLA(inlet_in5, param_gain5, accum);
  ;
  accum = ___SMMLA(inlet_in6, param_gain6, accum);
  ;
  outlet_out = __SSAT(inlet_bus__in + (accum << 5), 28);
}
