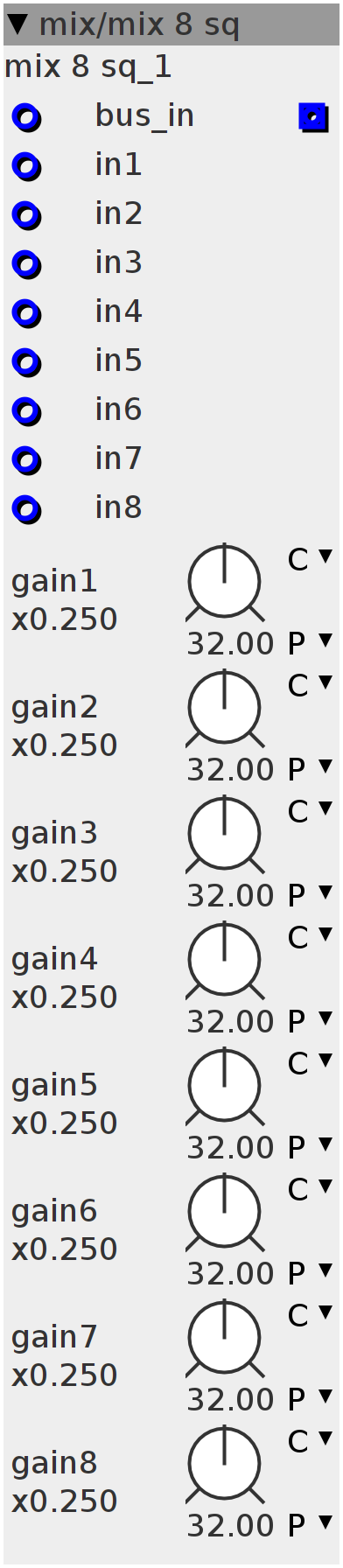

mix 8 sq
8 input s-rate mixer, square gain scale
IO Variants: 2
Variant: 1
Inlets
frac32buffer input with unity gain
frac32buffer input 1
frac32buffer input 2
frac32buffer input 3
frac32buffer input 4
frac32buffer input 5
frac32buffer input 6
frac32buffer input 7
frac32buffer input 8
Outlets
frac32buffer mix out
Parameters
frac32.u.map.squaregain gain1
frac32.u.map.squaregain gain2
frac32.u.map.squaregain gain3
frac32.u.map.squaregain gain4
frac32.u.map.squaregain gain5
frac32.u.map.squaregain gain6
frac32.u.map.squaregain gain7
frac32.u.map.squaregain gain8
int32_t accum = ___SMMUL(inlet_in1, param_gain1);
accum = ___SMMLA(inlet_in2, param_gain2, accum);
;
accum = ___SMMLA(inlet_in3, param_gain3, accum);
;
accum = ___SMMLA(inlet_in4, param_gain4, accum);
;
accum = ___SMMLA(inlet_in5, param_gain5, accum);
;
accum = ___SMMLA(inlet_in6, param_gain6, accum);
;
accum = ___SMMLA(inlet_in7, param_gain7, accum);
;
accum = ___SMMLA(inlet_in8, param_gain8, accum);
;
outlet_out = __SSAT(inlet_bus__in + (accum << 1), 28);Variant: 2
Inlets
frac32 input with unity gain
frac32 input 1
frac32 input 2
frac32 input 3
frac32 input 4
frac32 input 5
frac32 input 6
frac32 input 7
frac32 input 8
Outlets
frac32 mix out
Parameters
frac32.u.map.squaregain gain1
frac32.u.map.squaregain gain2
frac32.u.map.squaregain gain3
frac32.u.map.squaregain gain4
frac32.u.map.squaregain gain5
frac32.u.map.squaregain gain6
frac32.u.map.squaregain gain7
frac32.u.map.squaregain gain8
int32_t accum = ___SMMUL(inlet_in1, param_gain1);
accum = ___SMMLA(inlet_in2, param_gain2, accum);
;
accum = ___SMMLA(inlet_in3, param_gain3, accum);
;
accum = ___SMMLA(inlet_in4, param_gain4, accum);
;
accum = ___SMMLA(inlet_in5, param_gain5, accum);
;
accum = ___SMMLA(inlet_in6, param_gain6, accum);
;
accum = ___SMMLA(inlet_in7, param_gain7, accum);
;
accum = ___SMMLA(inlet_in8, param_gain8, accum);
;
outlet_out = __SSAT(inlet_bus__in + (accum << 1), 28);
