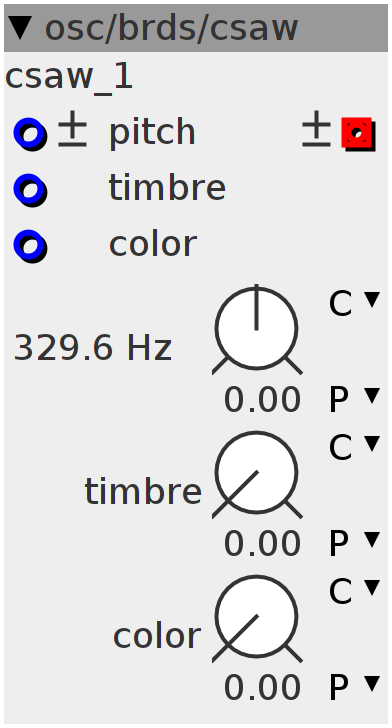

csaw

Virtual analog "CSAW" oscillator from Mutable Instruments Braids. Operating at 48kHz (original braids works at 96kHz).
Author: Johannes Taelman
License: BSD
Github: osc/brds/csaw.axo

Inlets

frac32.bipolar pitch

frac32 timbre

frac32 color

Outlets

frac32buffer.bipolar sine wave

Parameters

frac32.s.map.pitch pitch

frac32.u.map timbre

frac32.u.map color

Declaration
braids_deriv::CSaw osc;
Init
osc.Init();
Control Rate
osc.set_parameter(__USAT((inlet_timbre + param_timbre) >> 12, 15));
osc.set_aux_parameter(__USAT((inlet_color + param_color) >> 12, 15));
osc.set_pitch((64 << 7) + ((param_pitch + inlet_pitch) >> 14));

osc.Render(0, &outlet_wave[0], 0, BUFSIZE);
