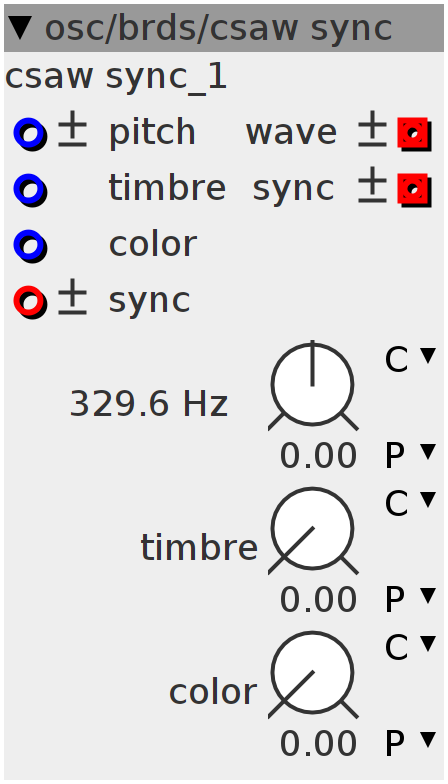

csaw sync
Virtual CSAW analog "CSAW" oscillator from Mutable Instruments Braids. Operating at 48kHz (original braids works at 96kHz).
Inlets
frac32 timbre
frac32 color
frac32buffer.bipolar sync
frac32.bipolar pitch
Outlets
frac32buffer.bipolar wave
frac32buffer.bipolar sync phasor
Parameters
frac32.s.map.pitch pitch
frac32.u.map timbre
frac32.u.map color
braids_deriv::CSaw osc;osc.Init();osc.set_parameter(__USAT((inlet_timbre + param_timbre) >> 12, 15));
osc.set_aux_parameter(__USAT((inlet_color + param_color) >> 12, 15));
osc.set_pitch((64 << 7) + ((param_pitch + inlet_pitch) >> 14));
osc.Render(&inlet_sync[0], &outlet_wave[0], &outlet_sync[0], BUFSIZE);
