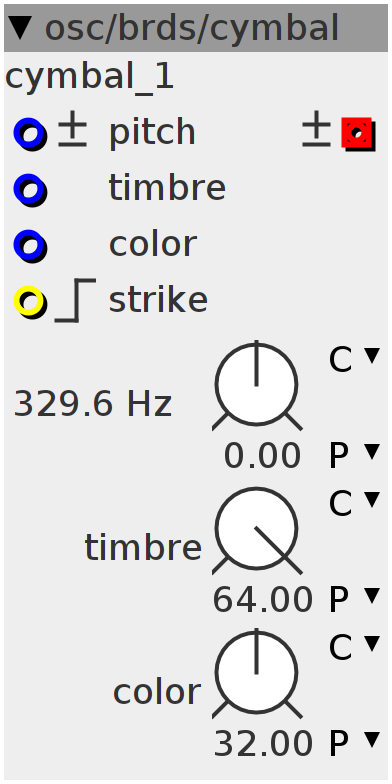

cymbal

"Cymbal" oscillator from Mutable Instruments Braids
Author: Johannes Taelman
License: BSD
Github: osc/brds/cymbal.axo

Inlets

bool32.rising strike

frac32.bipolar pitch

frac32 timbre

frac32 color

Outlets

frac32buffer.bipolar sine wave

Parameters

frac32.u.map timbre

frac32.u.map color

frac32.s.map.pitch pitch

Declaration
braids_digital_deriv::Cymbal osc;
Init
osc.Init();
Control Rate
osc.set_parameters(__USAT((inlet_timbre + param_timbre) >> 12, 15),
                   __USAT((inlet_color + param_color) >> 12, 15));
osc.set_pitch((64 << 7) + ((param_pitch + inlet_pitch) >> 14));

osc.Render(&outlet_wave[0], BUFSIZE);
