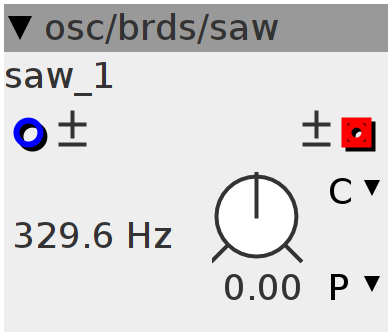

saw

Virtual analog saw oscillator from Mutable Instruments Braids. Operating at 48kHz (original Braids works at 96kHz).
Author: Johannes Taelman
License: BSD
Github: osc/brds/saw.axo

Inlets

frac32.bipolar pitch

Outlets

frac32buffer.bipolar sine wave

Parameters

frac32.s.map.pitch pitch

Declaration
braids_deriv::Saw osc;
Init
osc.Init();
Control Rate
osc.set_pitch((64 << 7) + ((param_pitch + inlet_pitch) >> 14));

osc.Render(0, &outlet_wave[0], 0, BUFSIZE);
