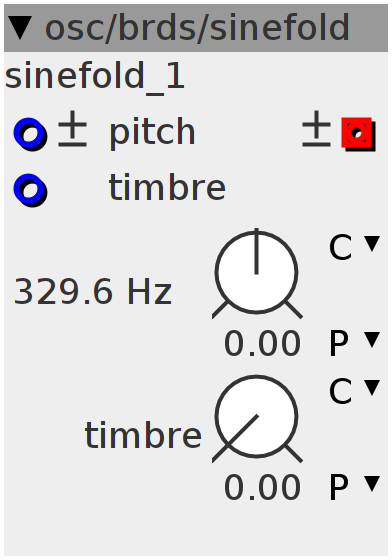

sinefold
Virtual analog sinefold oscillator from Mutable Instruments Braids. Operating at 48kHz (original Braids works at 96kHz).
Inlets
frac32 timbre
frac32.bipolar pitch
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch
frac32.u.map timbre
Declaration
braids_deriv::SineFold osc;
Init
osc.Init();
Control Rate
osc.set_parameter(__USAT((inlet_timbre + param_timbre) >> 12, 15));
osc.set_pitch((64 << 7) + ((param_pitch + inlet_pitch) >> 14));
osc.Render(0, &outlet_wave[0], BUFSIZE);
