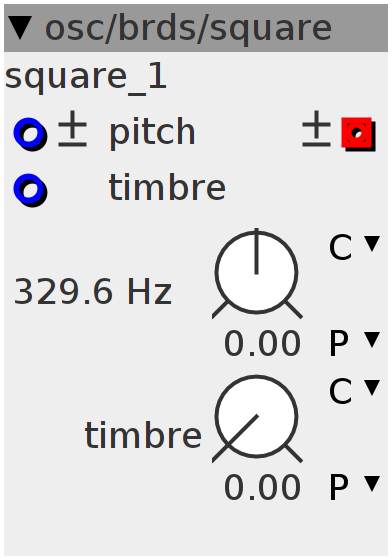

square
Virtual analog square oscillator from Mutable Instruments Braids. Operating at 48kHz (original Braids works at 96kHz).
Inlets
frac32.bipolar pitch
frac32 timbre
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch
frac32.u.map timbre
Declaration
braids_deriv::Square osc;
Init
osc.Init();
Control Rate
osc.set_parameter(__USAT((inlet_timbre + param_timbre) >> 12, 15));
osc.set_pitch((64 << 7) + ((param_pitch + inlet_pitch) >> 14));
osc.Render(0, &outlet_wave[0], 0, BUFSIZE);
