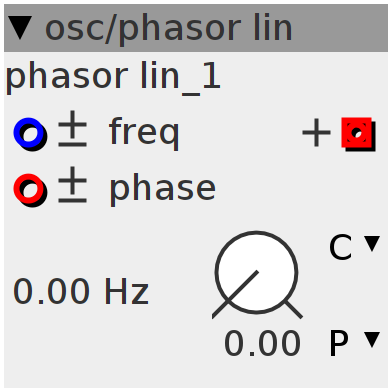

phasor lin

phasor saw like wave with linear frequency input(goes all the way to 0)
Author: Johannes Taelman
License: BSD
Github: osc/phasor lin.axo

Inlets

frac32.bipolar frequency

frac32buffer.bipolar phase

Outlets

frac32buffer.positive phasor wave

Parameters

frac32.u.map.freq freq

Declaration
uint32_t Phase;
Init
Phase = 0;
Audio Rate
Phase += (param_freq + inlet_freq) << 4;
int32_t r;
int32_t p2 = Phase + (inlet_phase << 4);
outlet_phasor = (p2 >> 4);
