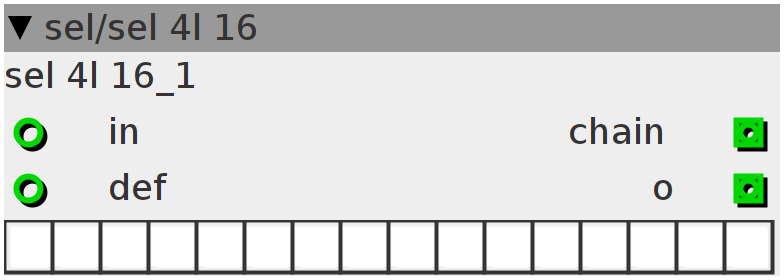

sel 4l 16

select one out of 16 4-levels, chainable
Author: Johannes Taelman
License: BSD
Github: sel/sel 4l 16.axo

Inlets

int32 in

int32 default value

Outlets

int32 chain out (in-16)

int32 output

Parameters

int2x16 t1

Control Rate
if ((inlet_in >= 0) && (inlet_in < 16))
  outlet_o = (param_t1 >> (inlet_in * 2)) & 3;
else
  outlet_o = inlet_def;
outlet_chain = inlet_in - 16;
