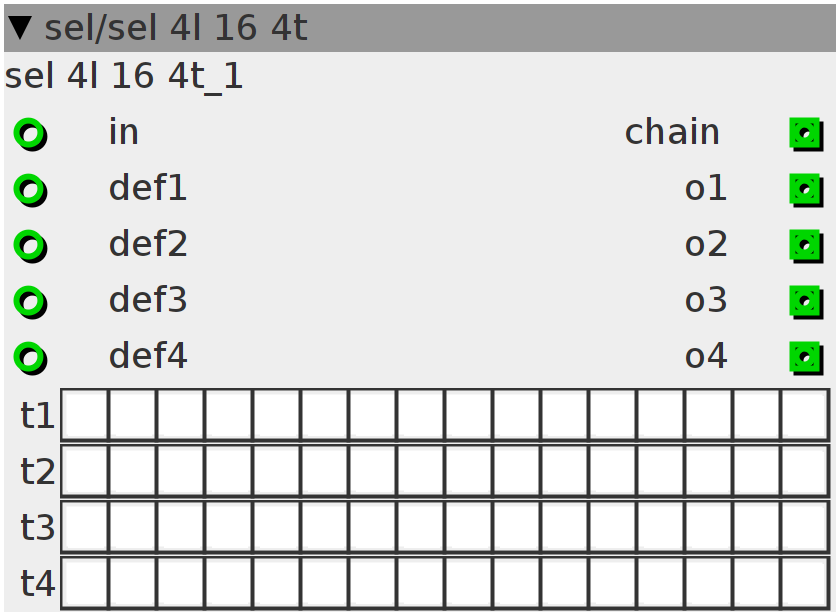

sel 4l 16 4t

select one out of 16 4-levels, 4 tracks, chainable
Author: Johannes Taelman
License: BSD
Github: sel/sel 4l 16 4t.axo

Inlets

int32 in

int32 default value track 1

int32 default value track 2

int32 default value track 3

int32 default value track 4

Outlets

int32 chain out (in-16)

int32 output track 1

int32 output track 2

int32 output track 3

int32 output track 4

Parameters

int2x16 t1

int2x16 t2

int2x16 t3

int2x16 t4

Control Rate
if ((inlet_in >= 0) && (inlet_in < 16)) {
  outlet_o1 = (param_t1 >> (inlet_in * 2)) & 3;
  outlet_o2 = (param_t2 >> (inlet_in * 2)) & 3;
  outlet_o3 = (param_t3 >> (inlet_in * 2)) & 3;
  outlet_o4 = (param_t4 >> (inlet_in * 2)) & 3;
} else {
  outlet_o1 = inlet_def1;
  outlet_o2 = inlet_def2;
  outlet_o3 = inlet_def3;
  outlet_o4 = inlet_def4;
}
outlet_chain = inlet_in - 16;
