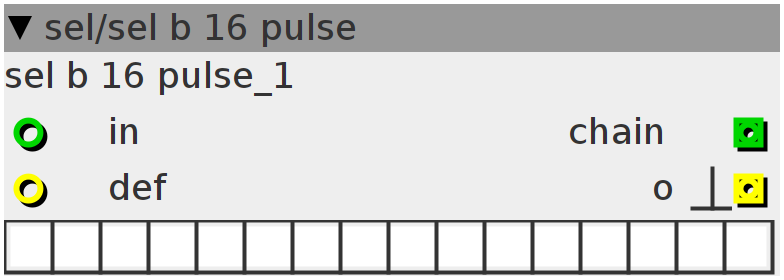

sel b 16 pulse
select one out of 16 booleans, chainable. Pulse output.
Inlets
int32 in
bool32 default value
Outlets
int32 chain out (in-16)
bool32.pulse output
Parameters
bin16 b16
Declaration
int in_prev;
Init
in_prev = 0;
Control Rate
if ((inlet_in >= 0) && (inlet_in < 16))
outlet_o = (in_prev != inlet_in) && (param_b16 & (1 << inlet_in));
else
outlet_o = inlet_def;
outlet_chain = inlet_in - 16;
in_prev = inlet_in;
