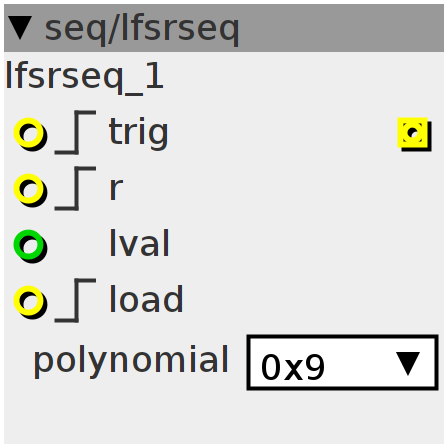

lfsrseq
linear feedback shift register cyclic pattern, cycled with trigger input.
Inlets
bool32.rising trigger
bool32.rising reset
bool32.rising load trigger
int32 load value
Outlets
bool32 lfs pattern
Attributes
combo polynomial
Declaration
uint32_t state;
int ntrig;
int rtrig;
int ltrig;
Init
state = 1;
ntrig = 0;
rtrig = 0;
ltrig = 0;
Control Rate
if ((inlet_trig > 0) && !ntrig) {
ntrig = 1;
if (state & 1) {
state = (state >> 1) ^ attr_polynomial;
} else {
state = (state >> 1);
}
} else if (!(inlet_trig > 0))
ntrig = 0;
if ((inlet_r > 0) && !rtrig) {
state = 1;
rtrig = 1;
} else if (!(inlet_r > 0))
rtrig = 0;
if ((inlet_load > 0) && !ltrig) {
state = inlet_lval;
ltrig = 1;
} else if (!(inlet_load > 0))
ltrig = 0;
outlet_out = state & 1;
