analyzer 24

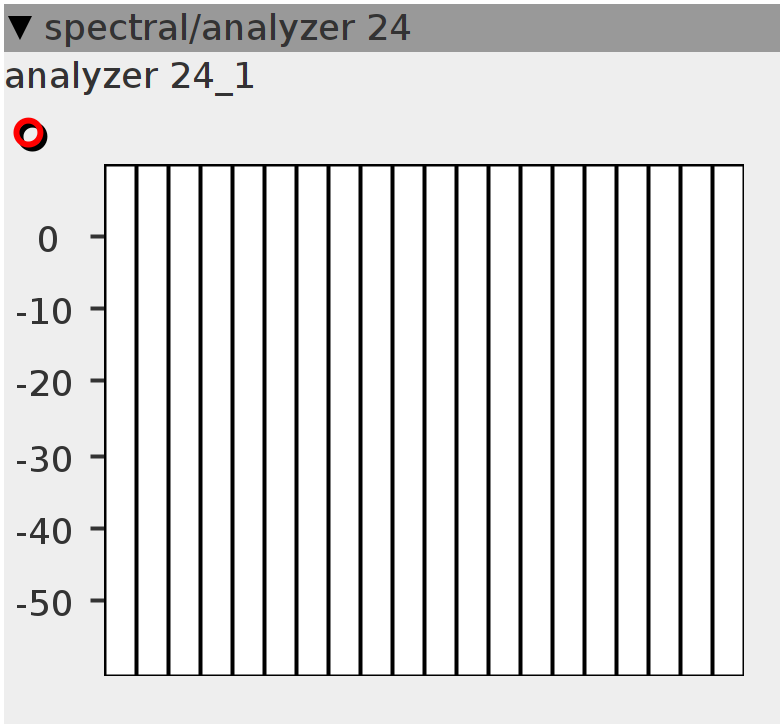

spectral analyzer made out of two 2nd order bandpass filters per band, decibel scale (vertical), steeper filters
Inlets
frac32buffer input
Outlets
None
Displays
frac32.vbar.db v0
frac32.vbar.db v1
frac32.vbar.db v2
frac32.vbar.db v3
frac32.vbar.db v4
frac32.vbar.db v5
frac32.vbar.db v6
frac32.vbar.db v7
frac32.vbar.db v8
frac32.vbar.db v9
frac32.vbar.db v10
frac32.vbar.db v11
frac32.vbar.db v12
frac32.vbar.db v13
frac32.vbar.db v14
frac32.vbar.db v15
frac32.vbar.db v16
frac32.vbar.db v17
frac32.vbar.db v18
frac32.vbar.db v19
vscale
biquad_state bs1[20];
biquad_state bs2[20];
biquad_coefficients bc1[20];
biquad_coefficients bc2[20];
int32_t val[20];int i;
for (i = 0; i < 20; i++) {
int32_t pitch = (-20 + (i * 4)) << 21;
int32_t freq;
MTOF(pitch, freq);
biquad_bp_coefs(&bc1[i], freq, INT_MAX - ((56 << 21) << 4));
biquad_clearstate(&bs1[i]);
int32_t pitch2 = pitch + (2 << 21);
int32_t freq2;
MTOF(pitch2, freq2);
biquad_bp_coefs(&bc2[i], freq2, INT_MAX - ((56 << 21) << 4));
biquad_clearstate(&bs2[i]);
}{
int32buffer t1;
biquad_dsp(&bs1[0], &bc1[0], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[0], &bc2[0], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[0] -= val[0] >> 6;
val[0] += accu >> 8;
disp_v0 = val[0];
}
{
int32buffer t1;
biquad_dsp(&bs1[1], &bc1[1], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[1], &bc2[1], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[1] -= val[1] >> 6;
val[1] += accu >> 8;
disp_v1 = val[1];
}
{
int32buffer t1;
biquad_dsp(&bs1[2], &bc1[2], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[2], &bc2[2], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[2] -= val[2] >> 6;
val[2] += accu >> 8;
disp_v2 = val[2];
}
{
int32buffer t1;
biquad_dsp(&bs1[3], &bc1[3], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[3], &bc2[3], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[3] -= val[3] >> 6;
val[3] += accu >> 8;
disp_v3 = val[3];
}
{
int32buffer t1;
biquad_dsp(&bs1[4], &bc1[4], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[4], &bc2[4], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[4] -= val[4] >> 6;
val[4] += accu >> 8;
disp_v4 = val[4];
}
{
int32buffer t1;
biquad_dsp(&bs1[5], &bc1[5], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[5], &bc2[5], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[5] -= val[5] >> 6;
val[5] += accu >> 8;
disp_v5 = val[5];
}
{
int32buffer t1;
biquad_dsp(&bs1[6], &bc1[6], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[6], &bc2[6], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[6] -= val[6] >> 6;
val[6] += accu >> 8;
disp_v6 = val[6];
}
{
int32buffer t1;
biquad_dsp(&bs1[7], &bc1[7], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[7], &bc2[7], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[7] -= val[7] >> 6;
val[7] += accu >> 8;
disp_v7 = val[7];
}
{
int32buffer t1;
biquad_dsp(&bs1[8], &bc1[8], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[8], &bc2[8], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[8] -= val[8] >> 6;
val[8] += accu >> 8;
disp_v8 = val[8];
}
{
int32buffer t1;
biquad_dsp(&bs1[9], &bc1[9], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[9], &bc2[9], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[9] -= val[9] >> 6;
val[9] += accu >> 8;
disp_v9 = val[9];
}
{
int32buffer t1;
biquad_dsp(&bs1[10], &bc1[10], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[10], &bc2[10], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[10] -= val[10] >> 6;
val[10] += accu >> 8;
disp_v10 = val[10];
}
{
int32buffer t1;
biquad_dsp(&bs1[11], &bc1[11], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[11], &bc2[11], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[11] -= val[11] >> 6;
val[11] += accu >> 8;
disp_v11 = val[11];
}
{
int32buffer t1;
biquad_dsp(&bs1[12], &bc1[12], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[12], &bc2[12], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[12] -= val[12] >> 6;
val[12] += accu >> 8;
disp_v12 = val[12];
}
{
int32buffer t1;
biquad_dsp(&bs1[13], &bc1[13], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[13], &bc2[13], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[13] -= val[13] >> 6;
val[13] += accu >> 8;
disp_v13 = val[13];
}
{
int32buffer t1;
biquad_dsp(&bs1[14], &bc1[14], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[14], &bc2[14], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[14] -= val[14] >> 6;
val[14] += accu >> 8;
disp_v14 = val[14];
}
{
int32buffer t1;
biquad_dsp(&bs1[15], &bc1[15], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[15], &bc2[15], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[15] -= val[15] >> 6;
val[15] += accu >> 8;
disp_v15 = val[15];
}
{
int32buffer t1;
biquad_dsp(&bs1[16], &bc1[16], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[16], &bc2[16], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[16] -= val[16] >> 6;
val[16] += accu >> 8;
disp_v16 = val[16];
}
{
int32buffer t1;
biquad_dsp(&bs1[17], &bc1[17], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[17], &bc2[17], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[17] -= val[17] >> 6;
val[17] += accu >> 8;
disp_v17 = val[17];
}
{
int32buffer t1;
biquad_dsp(&bs1[18], &bc1[18], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[18], &bc2[18], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[18] -= val[18] >> 6;
val[18] += accu >> 8;
disp_v18 = val[18];
}
{
int32buffer t1;
biquad_dsp(&bs1[19], &bc1[19], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[19], &bc2[19], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[19] -= val[19] >> 6;
val[19] += accu >> 8;
disp_v19 = val[19];
}
