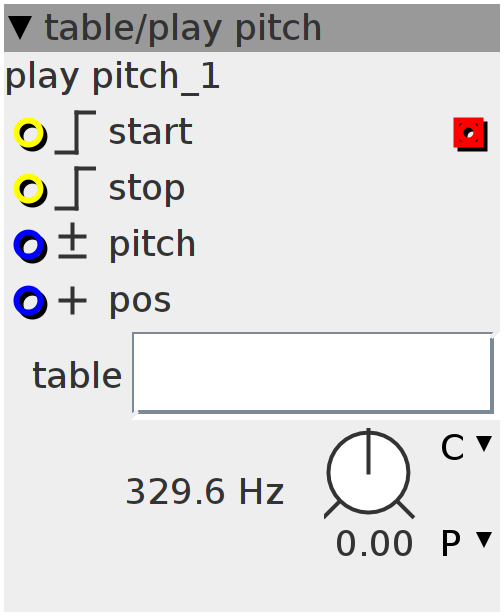

Akso - Audio DSP Platform

play pitch

$\text{[math]}$

play audio sample from table with pitch control, starting from position

Author: Johannes Taelman

License: BSD

Github: table/play pitch.axo

Inlets

bool32.rising start playback

bool32.rising stop playback

frac32.bipolar pitch modulation

frac32.positive start position in table

Outlets

frac32buffer wave

Parameters

frac32.s.map.pitch pitch

Attributes

objref table

Declaration

int pstart;
int pstop;
uint64_t pos;

Init

pos = 0;
pstart = 0;
pstop = 1;

Control Rate

if ((inlet_start > 0) && !pstart) {
  pstart = 1;
  pstop = 0;
  uint32_t asat = __USAT(inlet_pos, 27);
  pos = ((uint64_t)(asat >> (27 - attr_table.LENGTHPOW))) << 32;
} else if (!(inlet_start > 0)) {
  pstart = 0;
}
if ((inlet_stop > 0) && !pstop) {
  pstop = 1;
  pstart = 0;
}
uint32_t f0;
MTOFEXTENDED(inlet_pitch + 0xFEC747D4 - param_pitch, f0);

Audio Rate

if (!pstop) {
  if ((pos >> 32) < attr_table.LENGTH) {
    uint32_t r = ___SMMUL(attr_table.array[pos >> 32] << attr_table.GAIN,
                          INT32_MAX - (((uint32_t)pos) >> 1));
    r = ___SMMLA(attr_table.array[(pos >> 32) + 1] << attr_table.GAIN,
                 (((uint32_t)pos) >> 1), r);
    outlet_wave = r;
    pos += ((uint64_t)f0) << 8;
  } else
    outlet_wave = 0;
} else
  outlet_wave = 0;
