Akso - Audio DSP Platform

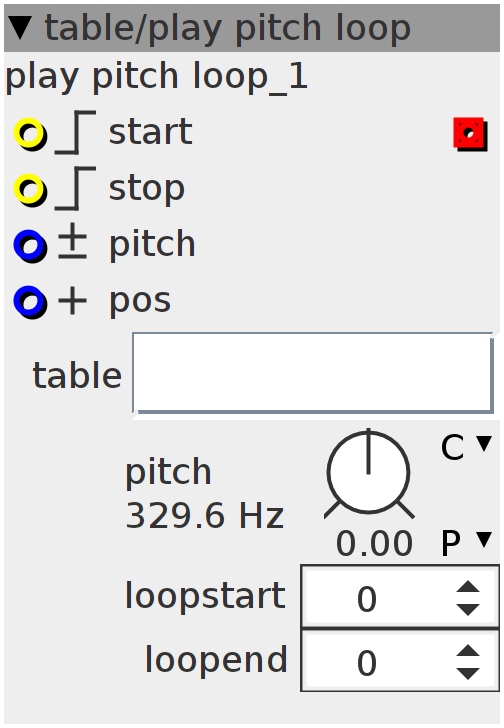

play pitch loop

$\text{[math]}$

play audio sample from table with pitch control, starting from position

Author: Johannes Taelman

License: BSD

Github: table/play pitch loop.axo

Inlets

bool32.rising start playback

bool32.rising stop playback

frac32.bipolar pitch modulation

frac32.positive start position in table

Outlets

frac32buffer wave

Parameters

frac32.s.map.pitch pitch

int32 loopstart

int32 loopend

Attributes

objref table

Declaration

int pstart;
int pstop;
uint64_t pos;

Init

pos = 0;
pstart = 0;
pstop = 1;

Control Rate

if ((inlet_start > 0) && !pstart) {
  pstart = 1;
  pstop = 0;
  uint32_t asat = __USAT(inlet_pos, 27);
  pos = ((uint64_t)(asat >> (27 - attr_table.LENGTHPOW))) << 32;
} else if (!(inlet_start > 0)) {
  pstart = 0;
}
if ((inlet_stop > 0) && !pstop) {
  pstop = 1;
  pstart = 0;
}
uint32_t f0;
MTOFEXTENDED(param_pitch + inlet_pitch, f0);

Audio Rate

if (!pstop) {
  if ((pos >> 32) < attr_table.LENGTH) {
    uint32_t r = ___SMMUL(attr_table.array[pos >> 32] << attr_table.GAIN,
                          INT32_MAX - (((uint32_t)pos) >> 1));
    r = ___SMMLA(attr_table.array[(pos >> 32) + 1] << attr_table.GAIN,
                 (((uint32_t)pos) >> 1), r);
    outlet_wave = r;
    pos += ((uint64_t)f0) << 4;
  } else
    outlet_wave = 0;
} else
  outlet_wave = 0;
